产品详情

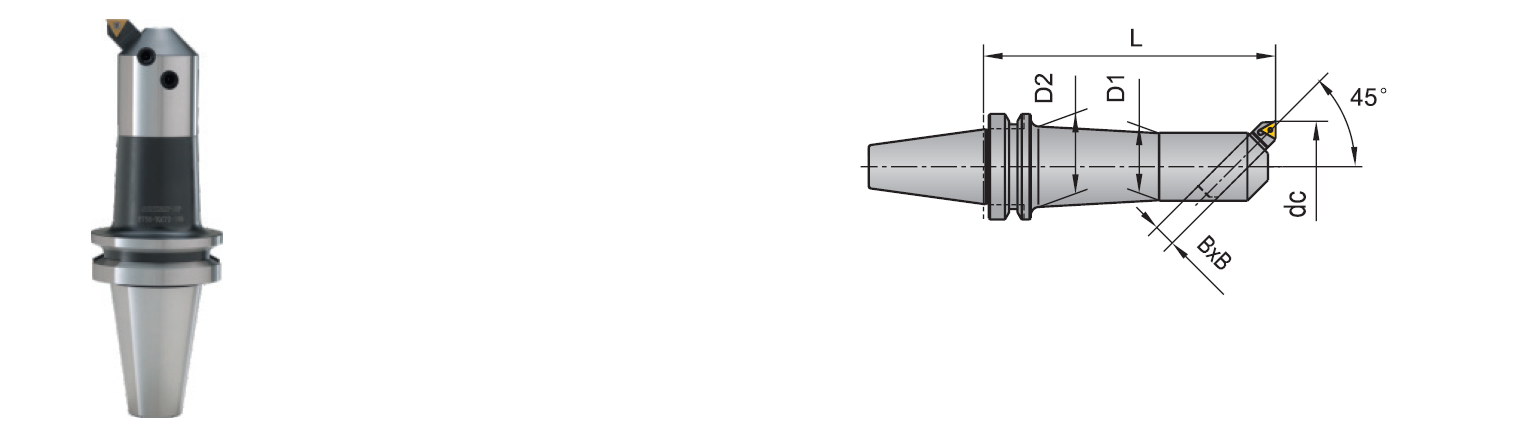

型号 Model	库存 Stock	锥度号 Taper No.	镗孔尺寸dc Boring range	尺寸Size （mm）				*	*	*
				尺寸Size （mm）				*	*	*
				L	D1	D2	B	螺钉 Screw	扳手 Hex wrench	重量 Weight
				L	D1	D2	B	螺钉 Screw	扳手 Hex wrench	重量 Weight
BT40-TQC25-135	●	40	25-38	135	20	24	8	RS04005	S2	1.19
BT40-TQC30-165	●	40	30-42	165	24	28	8	RS05006	S2.5	1.98
BT40-TQC38-180	●	40	38-52	180	30	36	10	RS06008	S3	2.71
BT40-TQC42-210	●	40	42-56	210	34	40	10	RS06008	S3	3.20
BT40-TQC50-180	●	40	50-65	180	40	44	13	RS08012	S4	3.43
BT40-TQC50-225	O	40	50-65	225	40	44	13	RS08012	S4	4.13
BT40-TQC62-180	●	40	62-90	180	50	50	16	RS10012	S5	3.80
BT40-TQC62-240	●	40	62-90	240	50	50	16	RS10012	S5	4.42
BT40-TQC72-180	●	40	72-110	180	50	50	19	RS12016	S6	4.14
BT40-TQC72-240	O	40	72-110	240	50	50	19	RS12016	S6	4.84
BT40-TQC90-180	O	40	90-125	180	55	55	19	RS12016	S6	4.89
BT40-TQC90-225	O	40	90-125	225	55	55	19	RS12016	S6	5.26

BT50-TQC25-135	●	50	25-38	135	20	24	8	RS04005	S2	3.01
BT50-TQC30-165	●	50	30-42	165	24	28	8	RS05006	S2.5	3.87
BT50-TQC38-180	●	50	38-52	180	30	36	10	RS06008	S3	4.72
BT50-TQC42-210	●	50	42-56	210	34	40	10	RS06008	S3	5.30
BT50-TQC50-180	●	50	50-65	180	40	48	13	RS08012	S4	5.92
BT50-TQC50-240	●	50	50-65	240	40	48	13	RS08012	S4	7.40
BT50-TQC62-195	●	50	62-90	195	50	56	16	RS10012	S5	7.12
BT50-TQC62-270	●	50	62-90	270	50	56	16	RS10012	S5	9.31
BT50-TQC72-195	●	50	72-110	195	60	66	19	RS12016	S6	9.81
BT50-TQC72-285	●	50	72-110	285	60	66	19	RS12016	S6	12.74
BT50-TQC90-210	●	50	90-125	210	72	77	19	RS12016	S6	11.17
BT50-TQC90-300	●	50	90-125	300	72	77	19	RS12016	S6	14.72
BT50-TQC115-220	O	50	115-160	220	80	80	25	RS16016	S8	13.13
BT50-TQC115-300	O	50	115-160	300	80	80	25	RS16016	S8	15.80
*镗刀头单独订购，根据加工要求接口BxB选配相应的镗刀头（镗刀头资料B60页）。									●标准库存	O订单生产
