产品详情

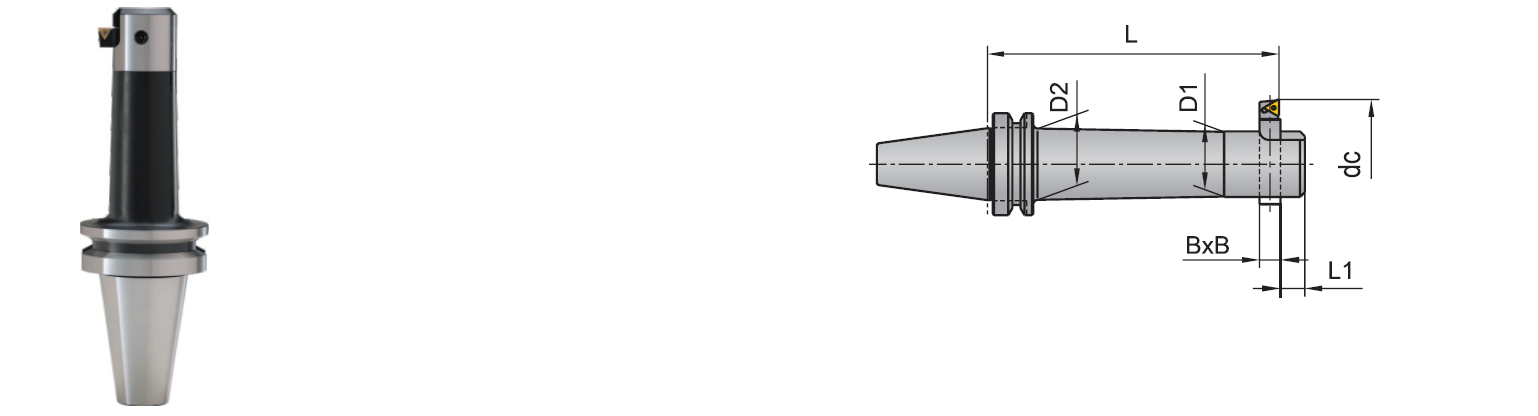

型号 Model	库存 Stock	锥度号 Taper No.	镗孔尺寸dc Boring range	尺寸Size （mm）					*	*	*
				尺寸Size （mm）					*	*	*
				L	D1	D2	L1	B×B	螺钉 Screw	扳手 Hex wrench	重量 Weight
				L	D1	D2	L1	B×B	螺钉 Screw	扳手 Hex wrench	重量 Weight
BT40-TZC25-135	●	40	25-50	135	20	24	10	8	RS04005	S2	1.33
BT40-TZC38-180	●	40	38-70	180	30	36	15	10	RS06008	S3	2.00
BT40-TZC50-180	●	40	50-90	180	40	44	15	13	RS08012	S4	3.03
BT40-TZC50-225	O	40	50-90	225	40	44	15	13	RS08012	S4	3.28
BT40-TZC62-180	O	40	62-115	180	50	56	15	16	RS10012	S5	3.82
BT40-TZC62-225	O	40	62-115	225	50	56	15	16	RS10012	S5	5.22
BT40-TZC72-180	O	40	72-135	180	50	50	15	19	RS12016	S6	3.98
BT40-TZC72-225	O	40	72-135	225	50	50	15	19	RS12016	S6	4.67
BT40-TZC90-180	O	40	90-150	180	50	50	15	19	RS12016	S6	4.73
BT40-TZC90-225	O	40	90-150	225	50	50	15	19	RS12016	S6	5.40

BT50-TZC25-135	●	50	25-50	135	20	24	10	8	RS04005	S2	4.13
BT50-TZC38-180	●	50	38-70	180	30	36	15	10	RS06008	S3	4.83
BT50-TZC50-180	●	50	50-90	180	40	48	15	13	RS08012	S4	5.44
BT50-TZC50-240	●	50	50-90	240	40	48	15	13	RS08012	S4	6.03
BT50-TZC62-195	●	50	62-115	195	50	56	15	16	RS10012	S5	6.72
BT50-TZC62-270	●	50	62-115	270	50	56	15	16	RS10012	S5	7.93
BT50-TZC72-195	●	50	72-135	195	60	66	15	19	RS12016	S6	7.61
BT50-TZC72-285	●	50	72-135	285	60	66	15	19	RS12016	S6	9.52
BT50-TZC90-210	●	50	90-150	210	72	77	18	19	RS12016	S6	10.50
BT50-TZC90-300	●	50	90-150	300	72	77	18	19	RS12016	S6	13.20
BT50-TZC105-195	●	50	105-190	195	80	80	20	25	RS16016	S8	11.30
BT50-TZC105-285	●	50	105-190	285	80	80	20	25	RS16016	S8	14.50

*镗刀头单独订购，根据加工要求接口BxB选配相应的镗刀头（镗刀头资料B57页）。										●标准库存	O订单生产
